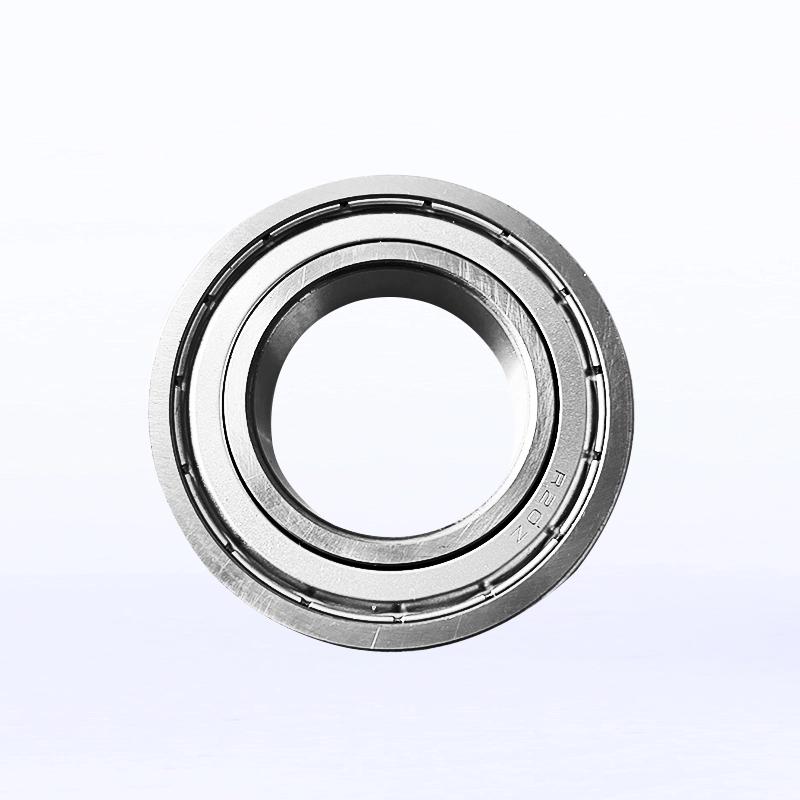

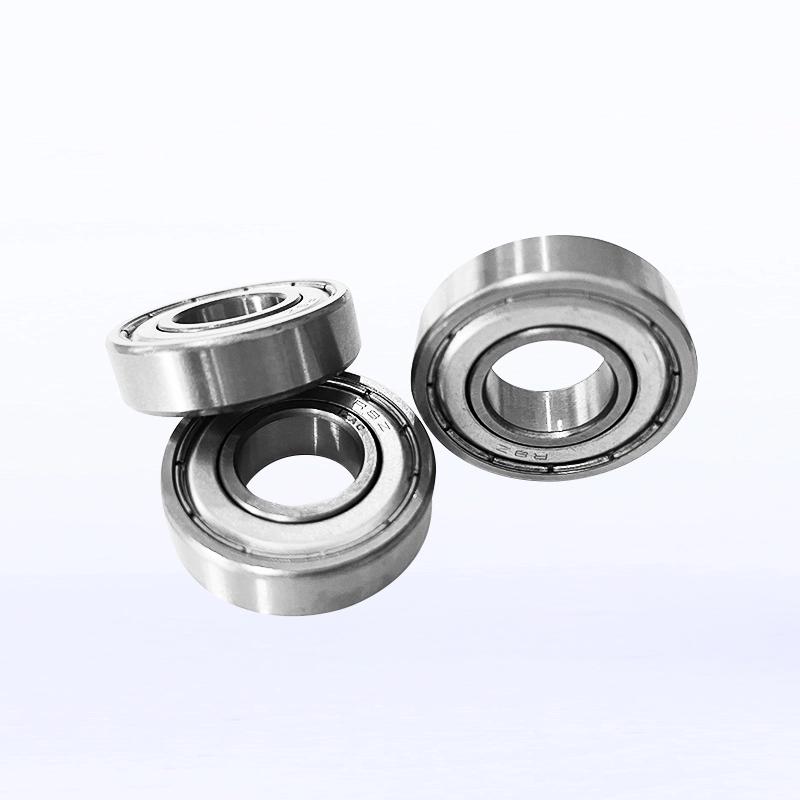

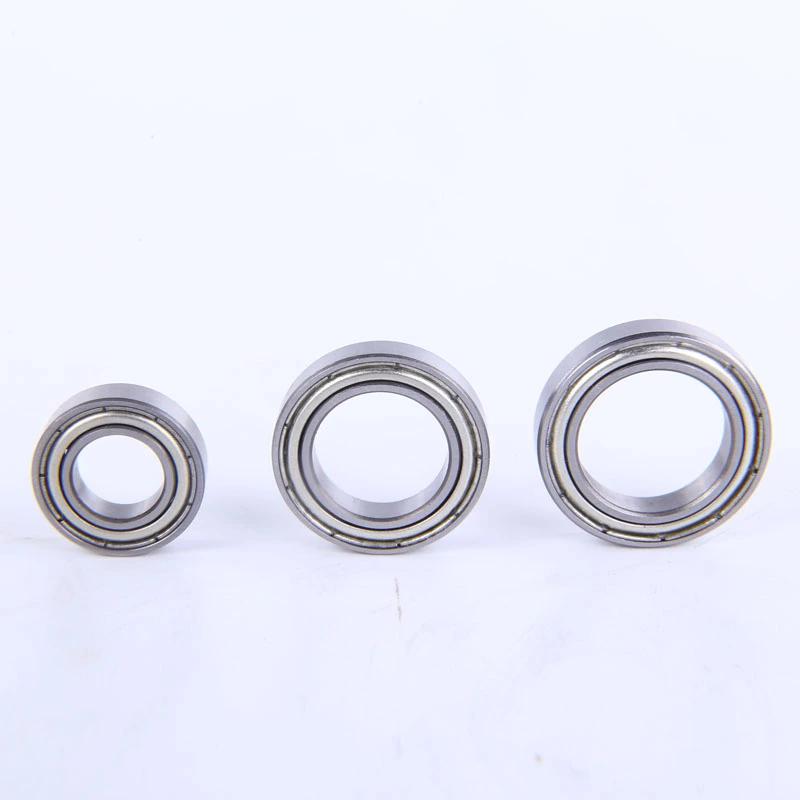

62 Series Bearings
Mobile Browsing
Bearing life:up to 10 years
Bearing accuracy:up to P5, P6 accuracy class
Product certification:through Rohs, SGS and other testing certification
Temperature environment: can be used in temperature environment from -60°C to +230°C
چۈشەندۈرلىشى
تۇنۇشتۇرلۇشى
the outer spherical ball bearing is actually a variant of the deep groove ball bearing, characterized by its outer ring outer diameter surface being spherical, which can be matched into the corresponding concave spherical surface of the bearing seat to play a centering role.
تېخنىكىلىق پارامېتىرى
| Demesions: | |
| Bearing No. | 6004, 6004-ZZ, 6004-2RS, 6004Z, 6004RS, 6004 ZZ, 6004 RS |
| Bore diameter (d) | 20 mm |
| Outer diameter (D) | 42 mm |
| Width (B) | 12 mm |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 9400 |
| Static(Cor) | 5050 |
| Max. Speed(RPM) | |
| Grease | 17000 |
| Oil | 21000 |
| Weight(g) | |
| Approx. | 69 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
