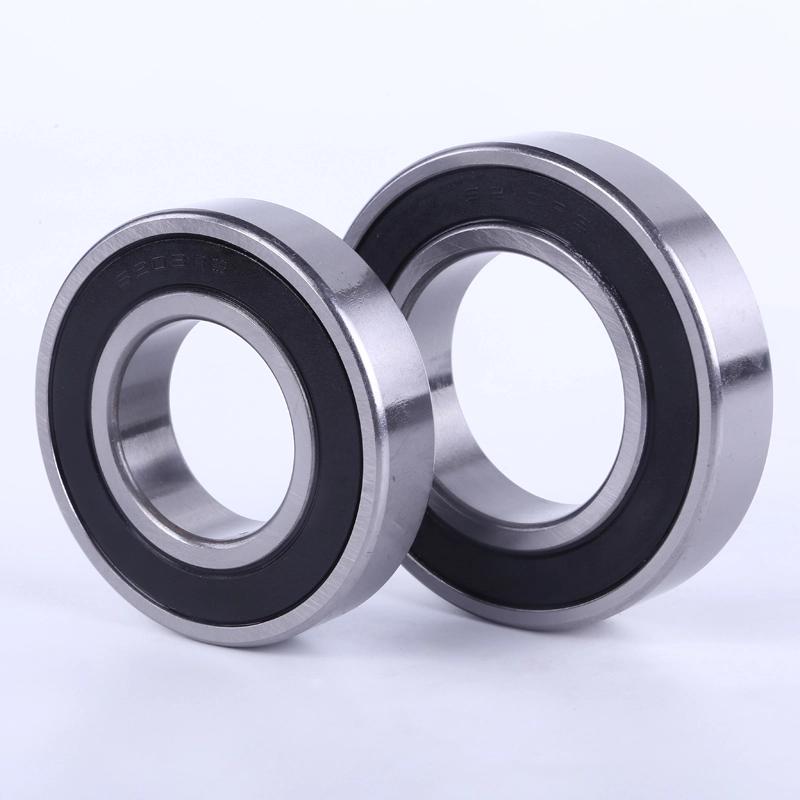

60 Series Bearings
Mobile Browsing
Bearing life:up to 10 years
Bearing accuracy:up to P5, P6 accuracy class
Product certification:through Rohs, SGS and other testing certification
Temperature environment:can be used in temperature environment from -60°C to +230°C
چۈشەندۈرلىشى
تۇنۇشتۇرلۇشى

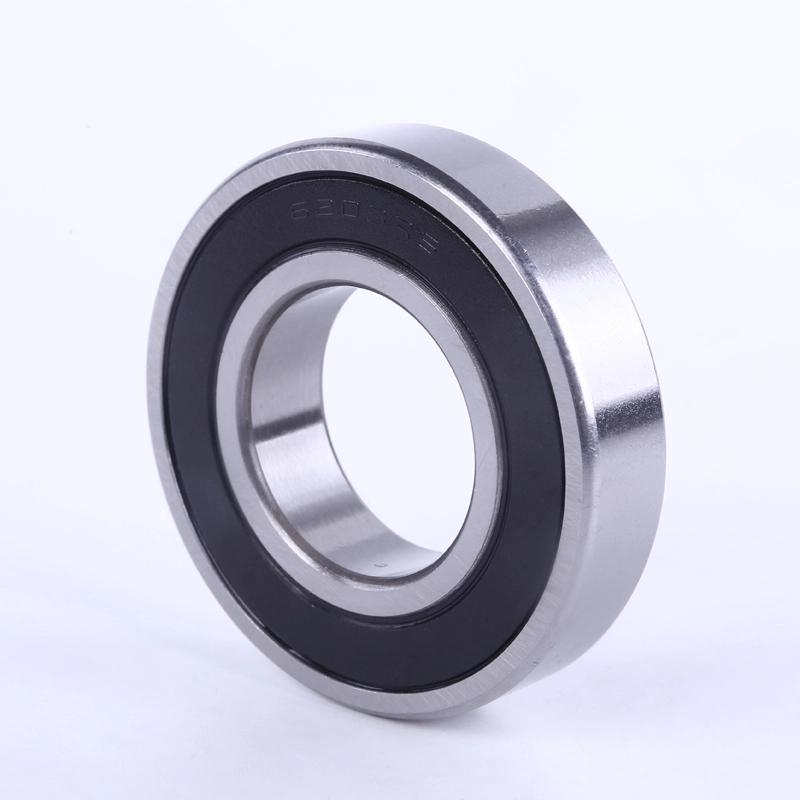

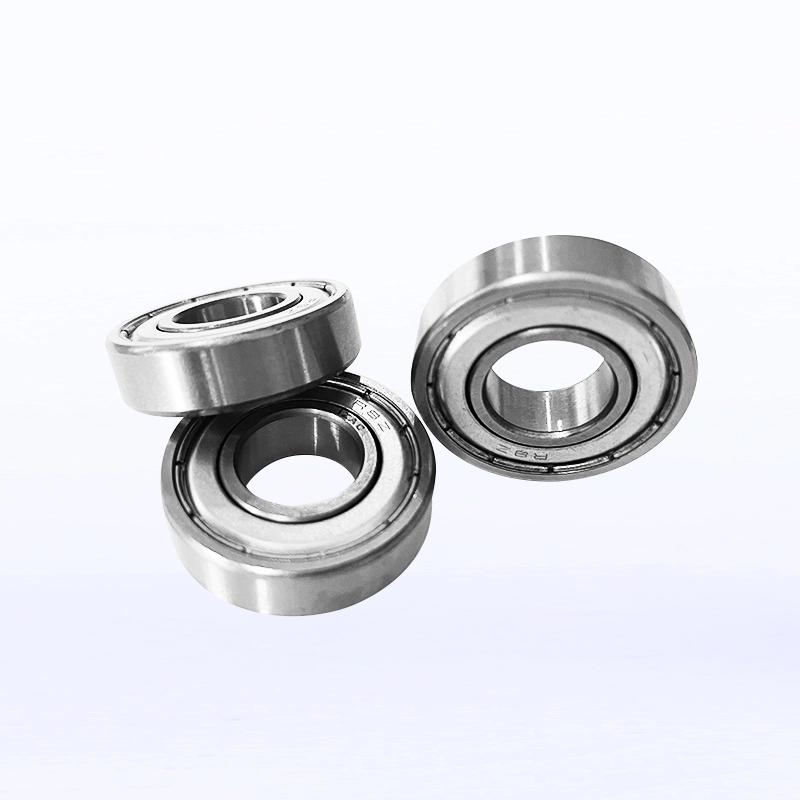

6008 bearing has open, seals and shield types, and v-groove inner ring is available.
It is widely used in Automotive, CNC Machinery, Textile Machinery, Washing Machine, Power Tool etc.
تېخنىكىلىق پارامېتىرى
| Demesions: | |
| Bearing No. | 6008, 6008-ZZ, 6008-2RS, 6008Z, 6008RS, 6008 ZZ, 6008 RS |
| Bore diameter (d) | 40 mm |
| Outer diameter (D) | 68 mm |
| Width (B) | 15 mm |
| Basic Load Rating(N) | |
| Dynamic(Cr) | 16700 |
| Static(Cor) | 11500 |
| Max. Speed(RPM) | |
| Grease | 10000 |
| Oil | 12000 |
| Weight(g) | |
| Approx. | 192 |
| Grade | P0, P6, P5 |
| Radial Clearance | C0, C2, C3 |
